Description
Product Features
- Housed in a rugged, all-steel 2U chassis
- Rear panel selection switch for stereo, parallel and bridged modes
- Rear panel low-cut filter, ground lift and limiter switches
- Operates within 8Ω and 4Ω loads
- Innovative heatsink with front to back air flow for efficient cooling
- Variable fan speed is automatically adjusted by temperature
- Electronically balanced XLR inputs
- Touch proof binding post and speakon outputs
- Precision indented level controls
- Front panel power switch
- Protect, peak and signal LED indicators for each channel
- Amplifier protection includes short circuit, excessive temperature and DC on outputs

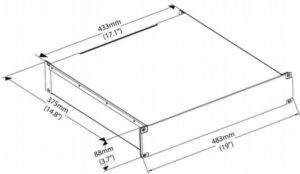

Chassis Dimensions
Technical Specifications
| 8Ω Stereo RMS Power: | 2x330W |
|---|---|
| 4Ω Stereo RMS Power: | 2x500W |
| 8Ω Bridge Mono RMS Power: | 1000W |
| Frequency Response: | 20Hz-20kHz (±.25dB) |
| Protection: | DC, Short Circuit, High Temp, Current Inrush, Input Overload, Output, Soft Start |
| THD+N (rated power, 4O/1kHz): | <0.5% |
| Damping Factor (100Hz at 8Ω): | >800 |
| Standard Input Sensitivity (rated power at 8Ω): | 1V |
| Input Impedance (balanced/unbalanced): | 20kΩ Balanced, 10kΩ Unbalanced |
| Crosstalk: | >75dB |
| Input Connectors (per channel): | 2 x XLR, 2 x 6.5mm TRS |
| Output Connectors (per channel): | 2 x NL4 + 4 x Binding post |
| Power Supply (factory configured): | 220V-230V 50Hz-60Hz,300VA |
| Cooling: | Two Speed DC Fan (flow front to rear) |
| Controls: | Front Panel: 2 Attenuators, Power Switch Rear Panel: Ground Lift, Mode & Filter |
| LED Indicators (per channel): | |
| Construction: | Steel Chassis, Solid Front Panel |
| Net Weight: | 15.0kg |
| Gross Weight: | 17.0kg |
| Dimensions (W x D x H): | 483mm (19”) x 452mm (17.8”) x 88mm (3.5”) |
| Packaging Dimensions (W x D x H): | 550mm (21.7”) x 540mm (21.3”) x 175mm (6.9”) |
| Warranty: | 3 years |
